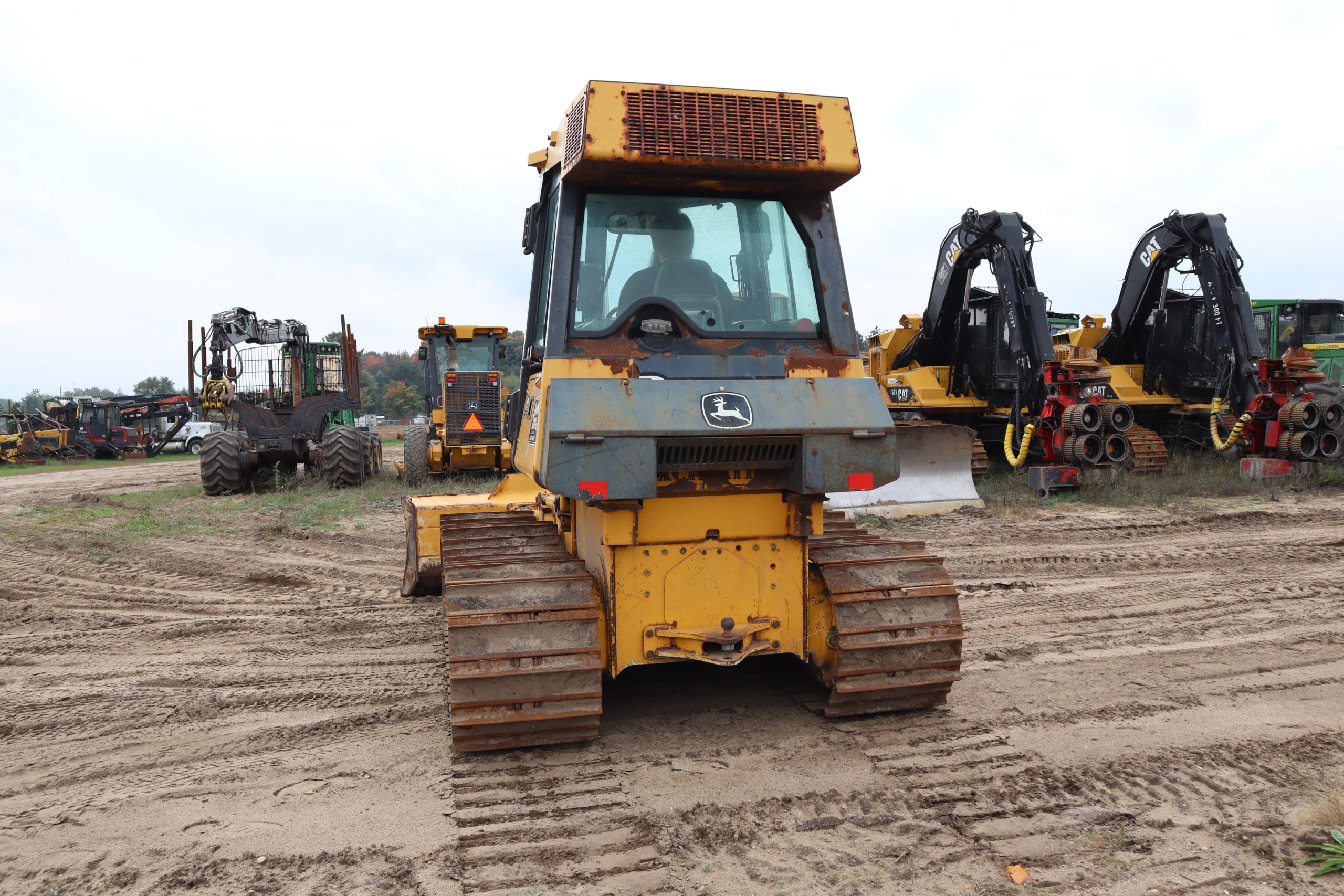

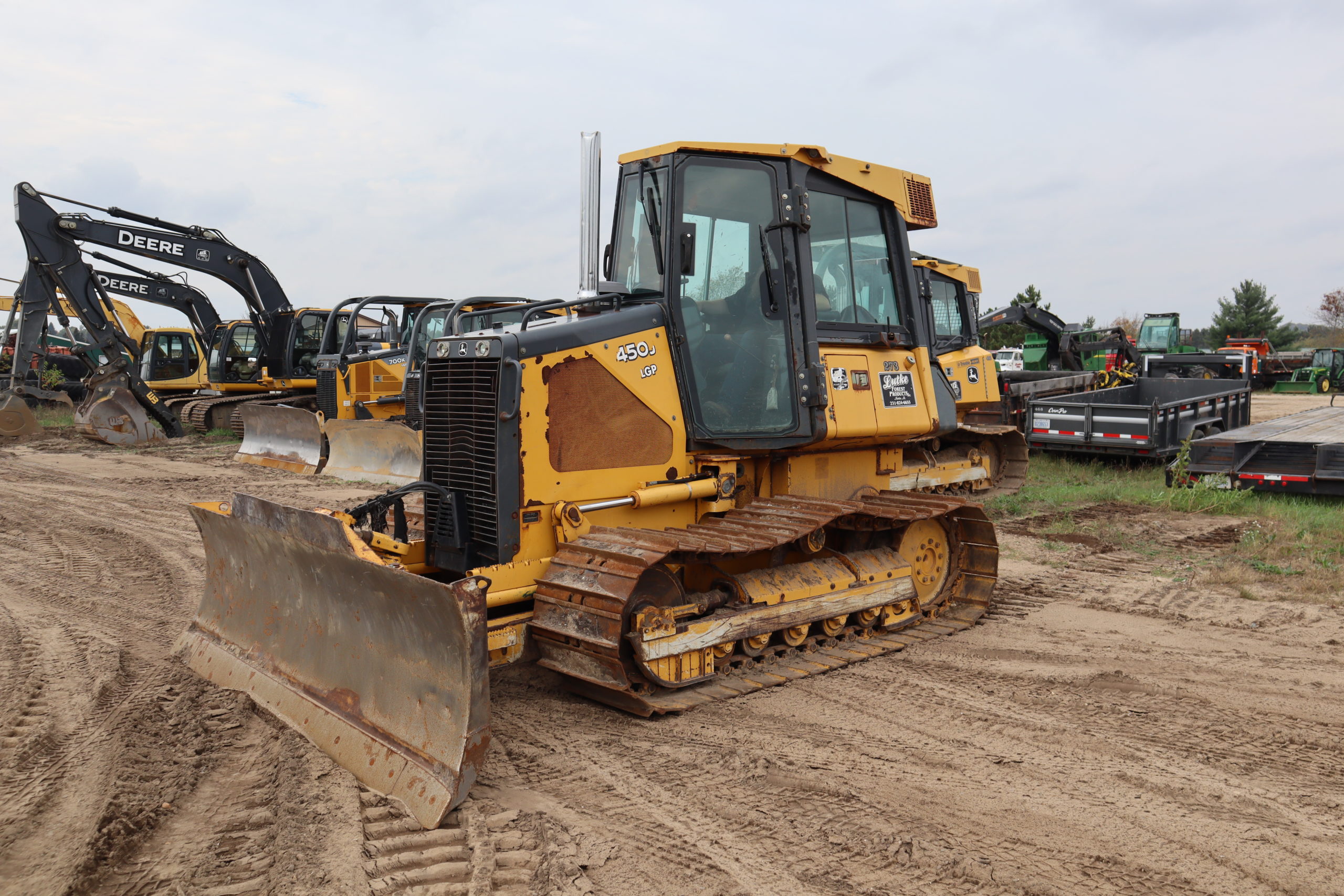

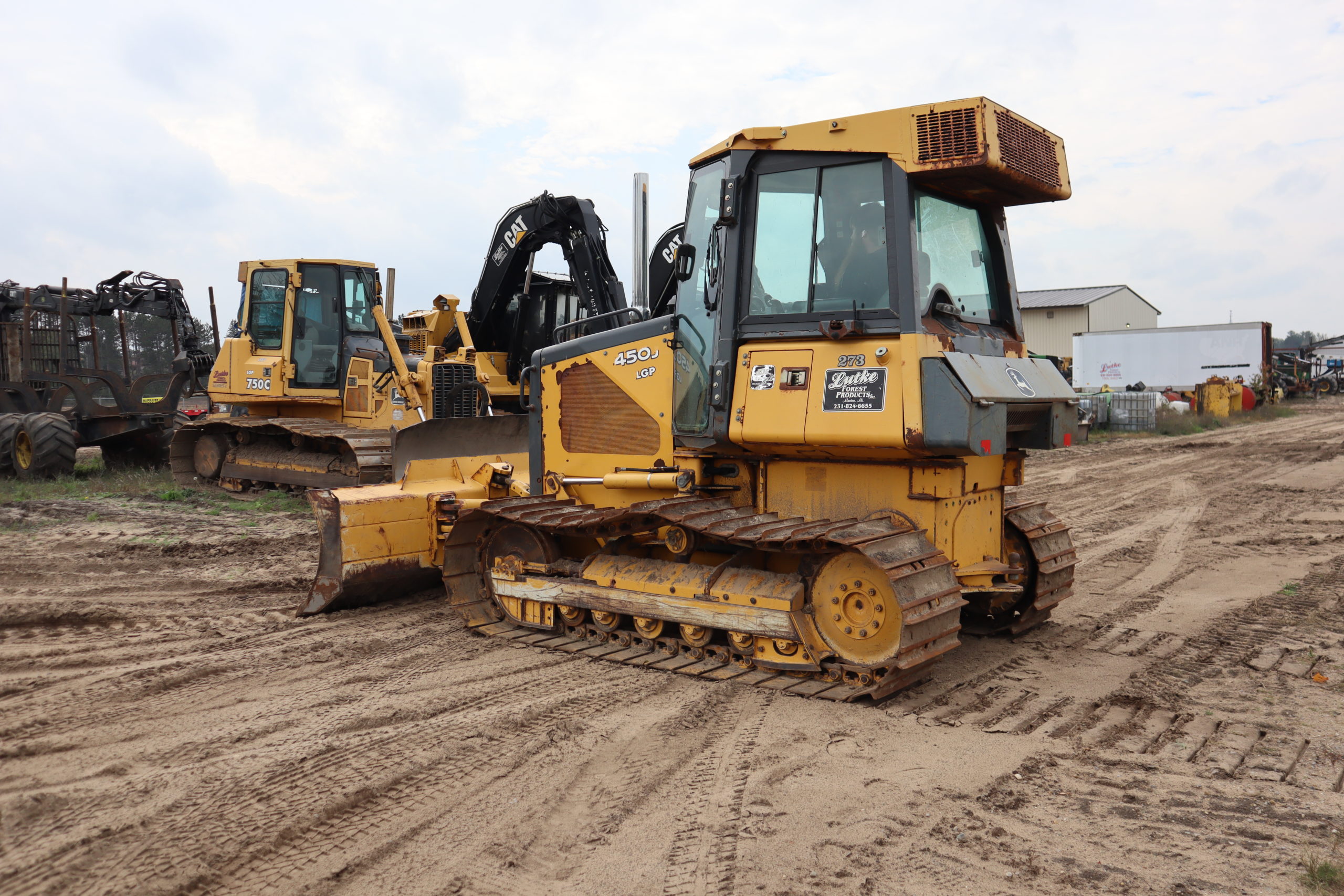

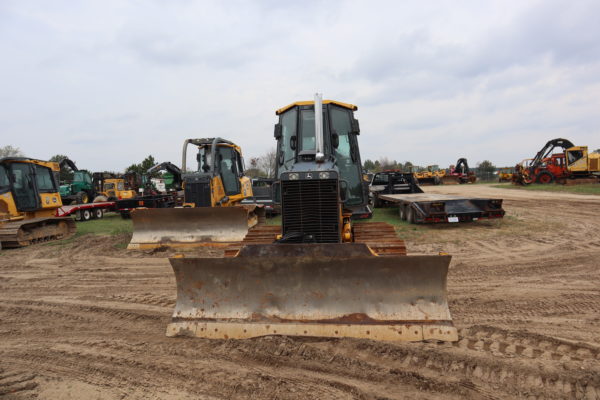

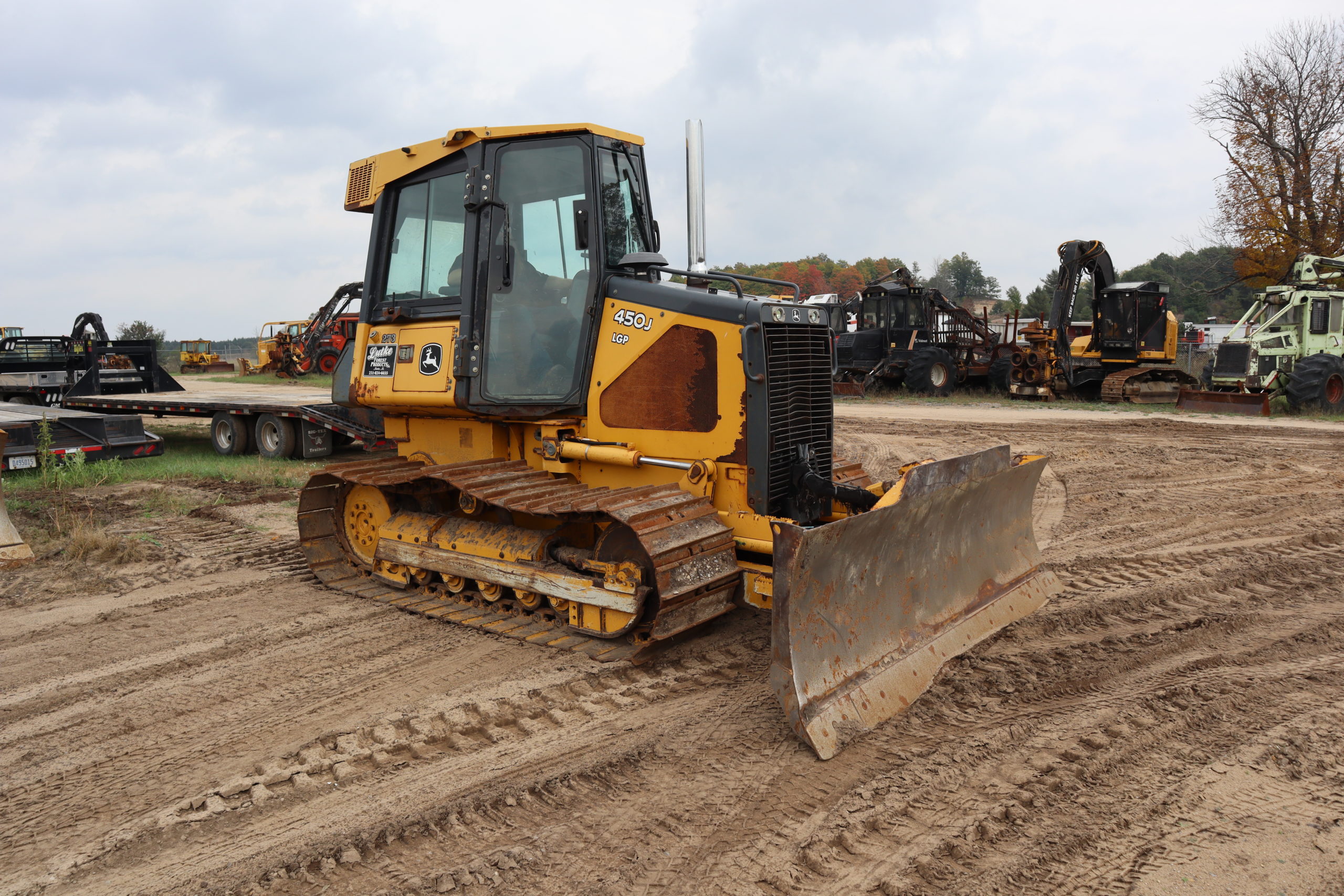

John Deere 450J Dozer

Rental Rates

  • Day (8Hrs) $600.00
  • Weekend (16Hrs) $900.00
  • Week (40Hrs) $2200.00
  • Month (160Hrs) $6600.00

Shipping Length Of Unit
27.96ft in

Shipping Height Of Unit
9.42ft in

Max Cutting Height
28.84ft in

Max Loading Height
20.25ft in

Max Reach Along Ground
27.96ft in

Max Vertical Wall Digging Depth
16.05ft in

Max Digging Depth
18.57ft in

Boom/Stick Option (Hex) 1
Boom 16’11” (5150mm)/Stick 7’5″ (2250mm)

Boom/Stick Option (Hex) 2

Shipping Length Of Unit
27.89ft in

Max Cutting Height
28.97ft in

Shipping Height Of Unit
9.29ft in

Max Loading Height
20.41ft in

Max Reach Along Ground
28.86ft in

Max Vertical Wall Digging Depth
16.9ft in

Max Digging Depth
19.85ft in

Boom/Stick Option (Hex) 2
Boom 16’11” (5150mm)/Stick 8’7″ (2620mm)

Boom/Stick Option (Hex) 3

Shipping Length Of Unit
27.89ft in0

Max Cutting Height
29.37ft in

Max Loading Height
20.87ft in

Shipping Height Of Unit
9.59ft in

Max Reach Along Ground
29.79ft in

Max Vertical Wall Digging Depth
17.67ft in

Max Digging Depth
20.81ft in

Boom/Stick Option (Hex) 3
Boom 16’11” (5150mm)/Stick 9’6″ (2900mm)

Dimensions

Ground Clearance
1.45ft in

Height To Top Of Cab
9.26ft in

Width To Outside Of Tracks
8.17ft in

Length Of Track On Ground
9.45ft in

Tail Swing Radius
8.03ft in

Removal Counterweight Clearance
3.22ft in

Undercarriage

Track Gauge
6.53ft in

Shoe Size
19.69in

Ground Pressure
7psi

Max Travel Speed
3.42mph

Specifications
Engine
Number Of Cylinders
6

Engine Make
2238

Engine Model
S6D95L

Gross Power
99.3hp

Power Measured @
2000rpm

Displacement
298.5cu in

Operational
Operating Weight
33907.1lb

Fuel Capacity
60.8gal

Hydraulic System Fluid Capacity
35.7gal

Hydraulic System Relief Valve Pressure
4620psi

Hydraulic Pump Flow Capacity
73gal/min

Swing Mechanism
Swing Speed
12rpm

Buckets
Reference Bucket Capacity
0.9yd3

Minimum Bucket Capacity
0.8yd3

Maximum Bucket Capacity
1yd3

Available for rent in store only (231)824-9505
