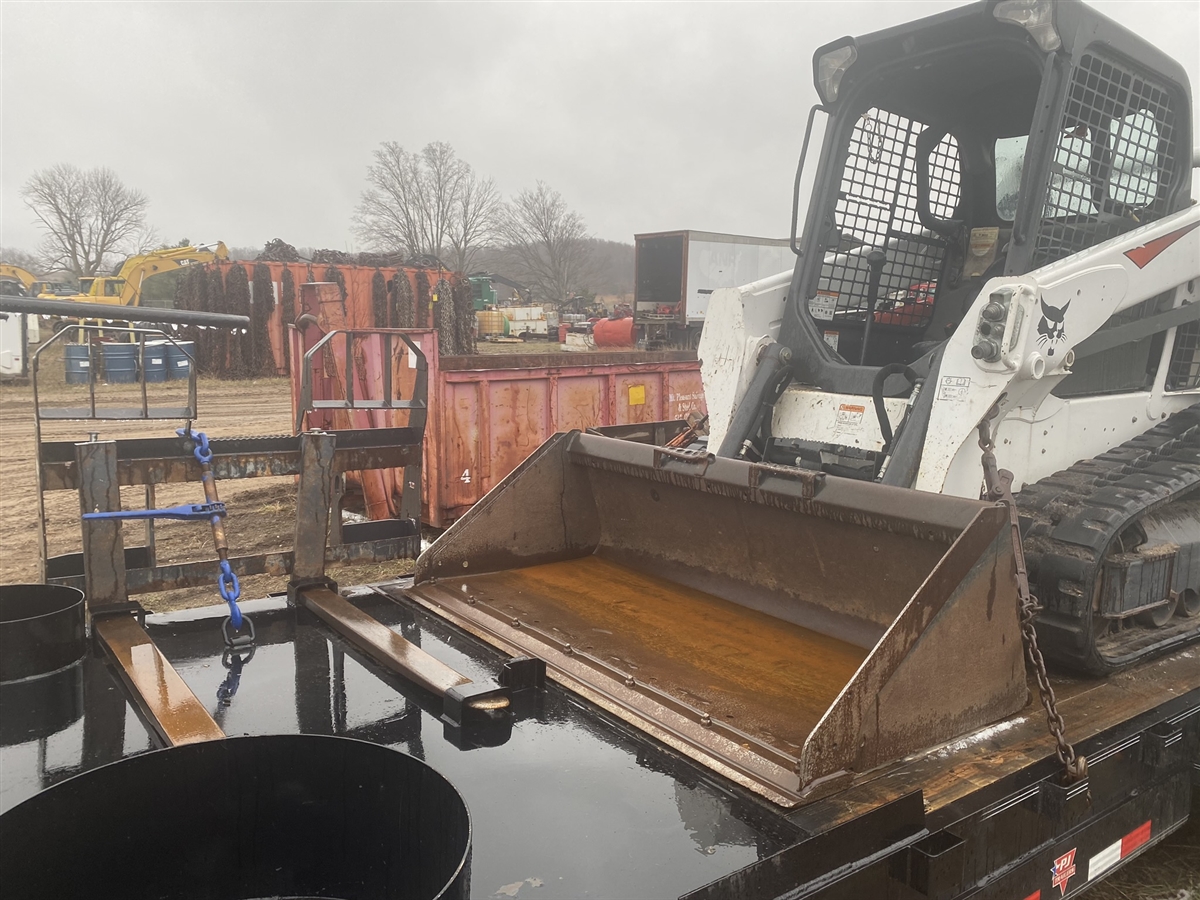

Bobcat T590 Skid Steer W/ Bucket and Forks

Rental Rates

  • Day $250.00
  • Weekend $400.00
  • Week $900.00
  • Month $2500.00

Performance
Tipping load (ISO 14397-1) 2,774 kg
Rated operating capacity (ISO 14397–1) 971 kg
Pump capacity 64.7 L/min
Pump capacity (with high flow option) 101.1 L/min
System relief at quick couplers 23.8-24.5 MPa
Max. travel speed (high range – optional) 16.7 km/h
Engine
Make / Model Bobcat / D24
Compliancy 97/68 EC Stage IIIB
Fuel Diesel
Cooling Liquid
Power 49.2 kW
Torque at 1500 RPM (SAE J1995 Gross) 245 Nm
Number of cylinders 4
Displacement 2,392 cm3
Fuel tank 138.2 L
Weights
Operating weight 3,548 kg
Shipping weight 3,187 kg
Dimensions Operating height 3,901 mm Height with operator cab 1,972 mm Angle of departure 28.8 ° Ground clearance 240 mm Ground contact length 1,402 mm Length without attachment 2,657 mm Length with standard bucket 3,378 mm Rollback at ground position 30 ° Dump height with standard bucket 2,319 mm Height to bucket hinge pin 3,023 mm Dump reach at maximum height 887 mm Dump angle at maximum height 42 ° Rollback fully raised at maximum height 97 ° Bucket width, 68–inch 1,727 mm Bucket width, 74–inch 1,880 mm Turning radius with standard bucket 2,032 mm Track, 320 mm tracks 1,384 mm Width over tracks, 320 mm tracks 1,704 mm
Controls
Vehicle steering Direction and speed controlled by two hand levers or optional joysticks
Loader hydraulics tilt and lift Separate foot pedals or optional Advanced Control System (ACS) or Selectable Joystick Control (SJC)
Front auxiliary (standard) Electrical switch on right-hand steering lever
Drive System
Transmission Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors

Available for rent in store only (231)824-9505
